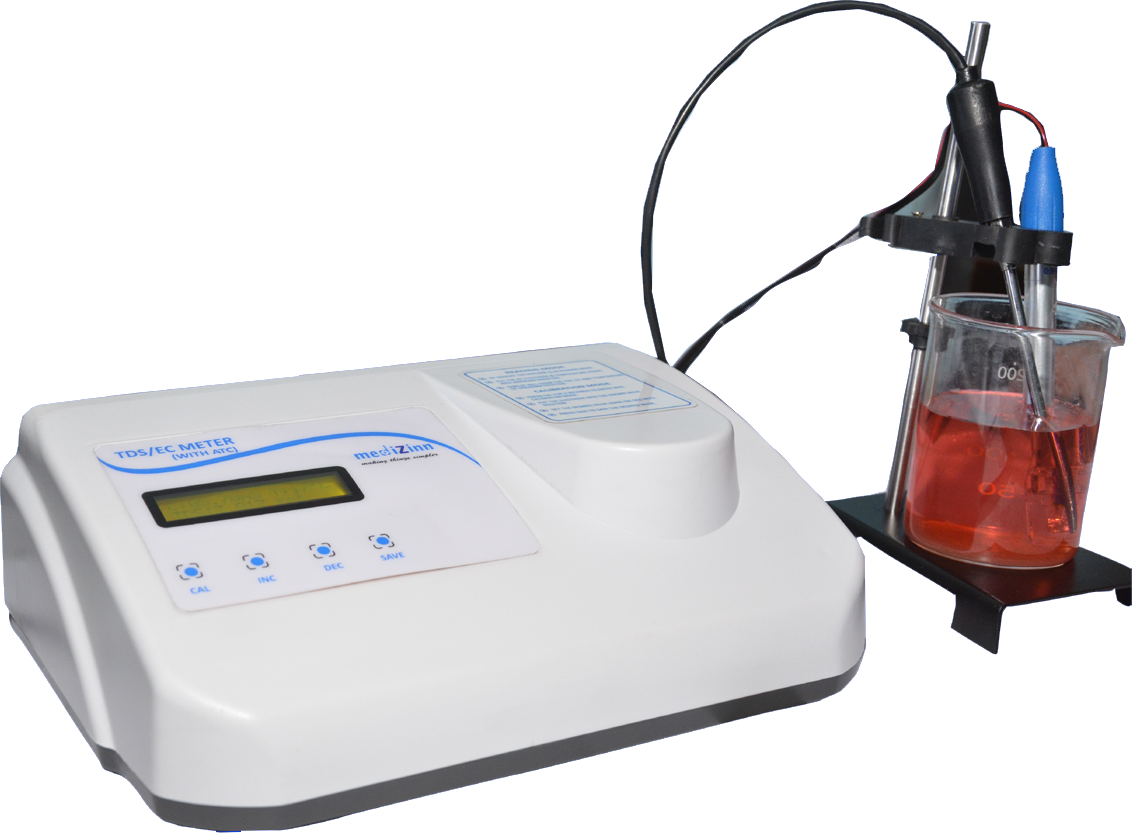

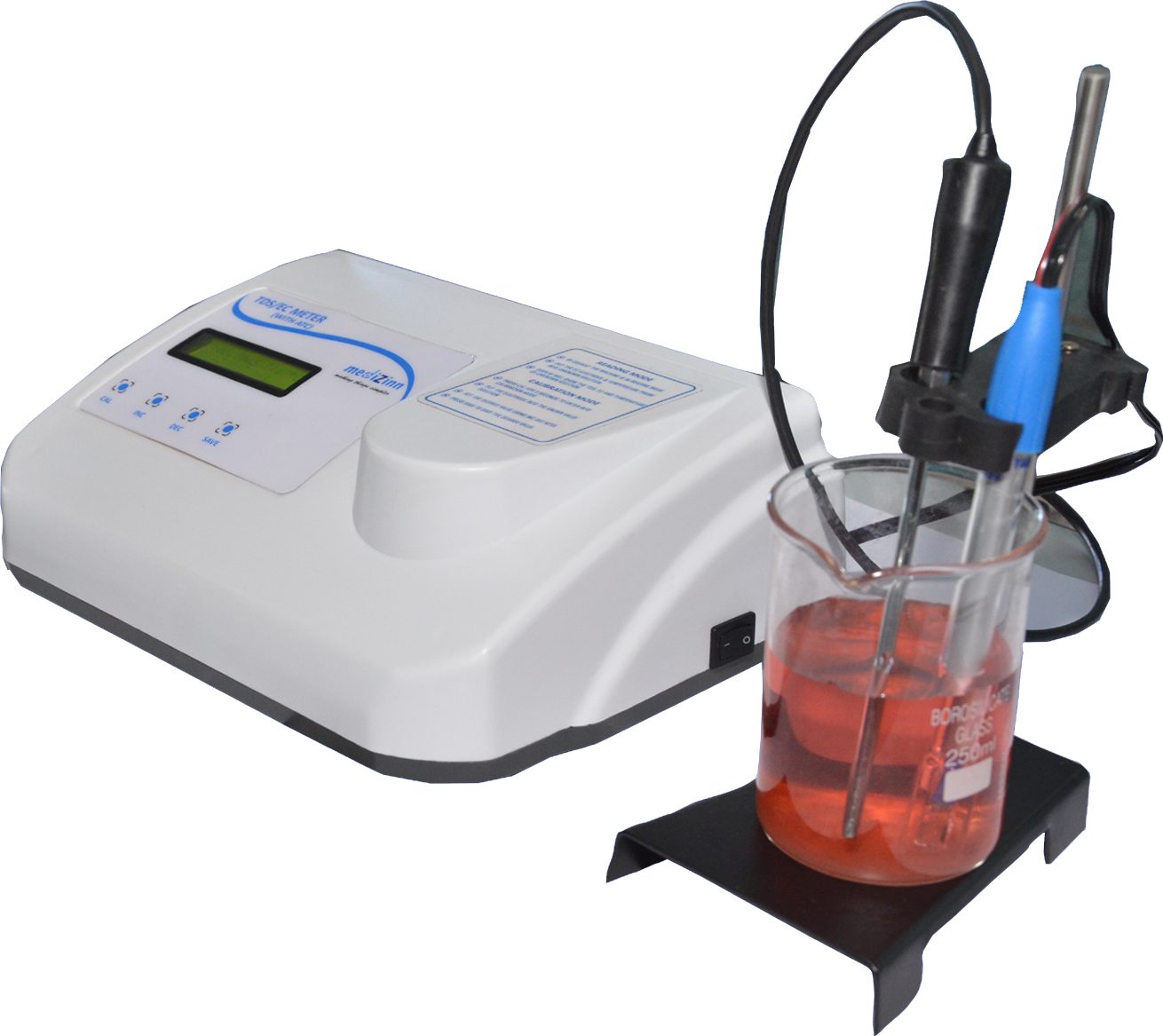

Conductivity Meter

A TDS meter is used to indicate the total disssolved solids (TDS) of the solution i.e. the concentration of dissolved solid particles.

Dissolved ionized solids such as salts & minerals increase the electrical conductivity (EC) of the solution can be used to measure the TDS.

Product Code: MZ 121 - NR

Technical Specifications
type	MICROPROCESSOR BASED
Function	Display TDS / ES / TEMPERATURE SIMULTANEOUSLY
TDS Range	0 to 1000 ppt Auto ranging
EC Range	0 to 1000 ms Auto ranging
Temp	0 to 100° C
Resolution	TDS 0.1 ppm EC 0.1 µ mhos temp 0.1 degree C
Accuracy	0.5% of range
Cell Constant	Adjustable
Display	16x2 Alphanumeric
Measuring Cell	Platinum DIP Type
Temperature Compensation	Automatic
Dimensions	275 x 187 x 94 mm (Approx)
Weight	1kg ( approx)
Power Supply	230 V ± 10 V AC , 50Hz
Accessories	conductivity cell cell stand Temp. Probe Operating manual
