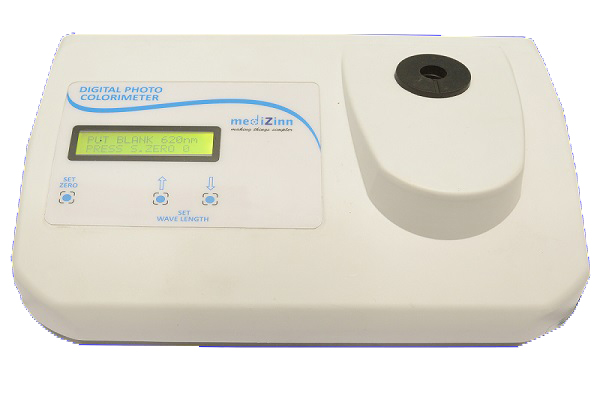

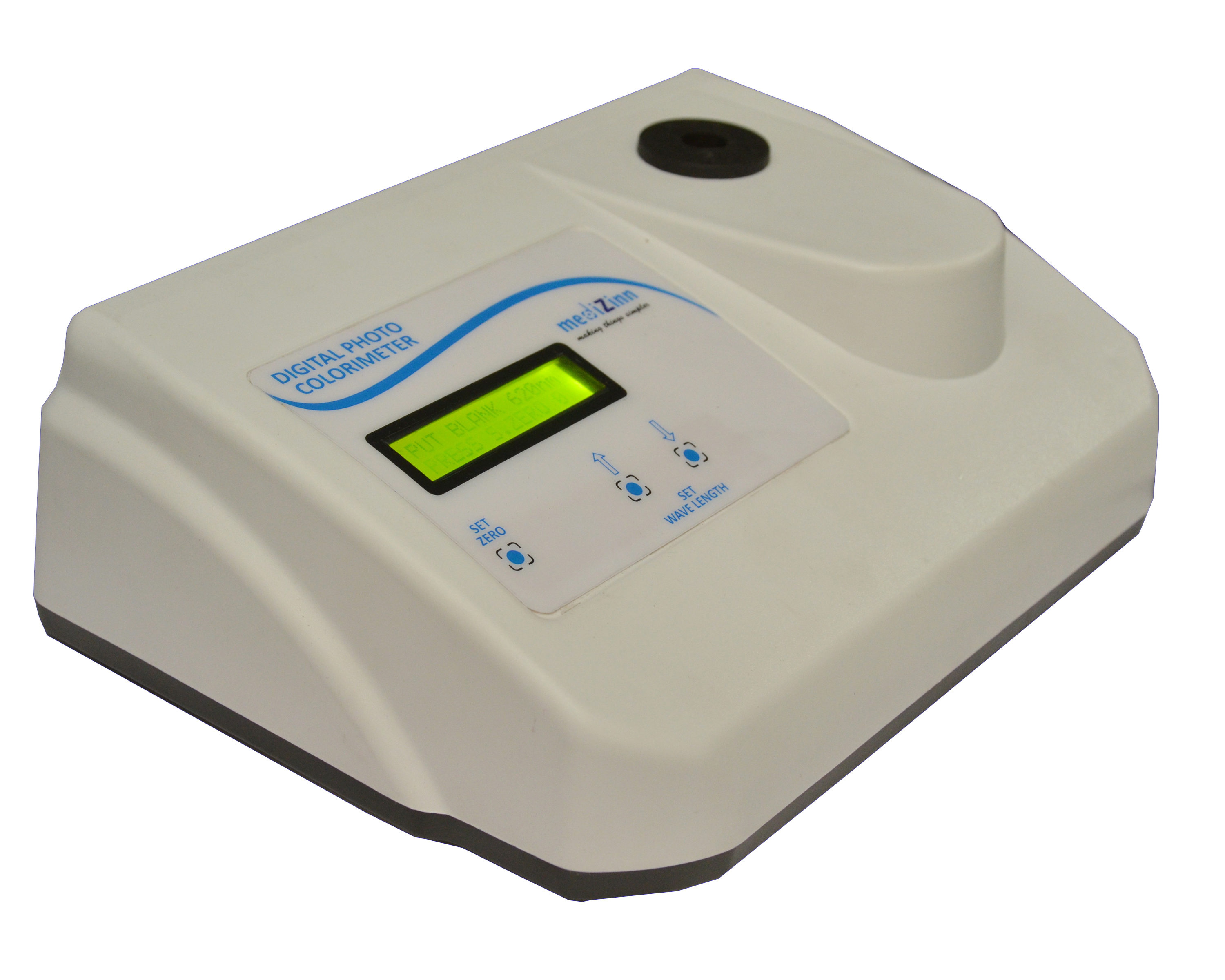

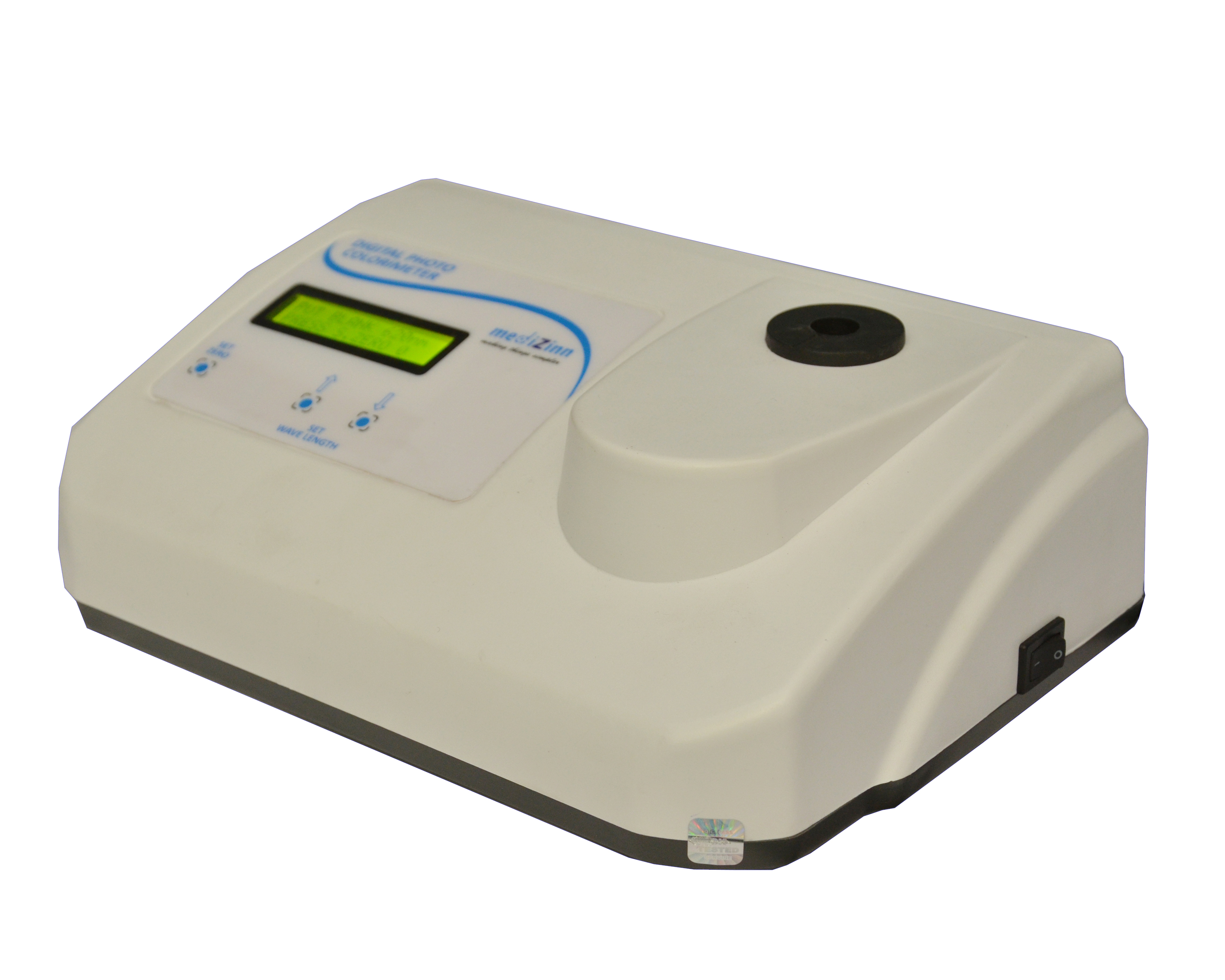

Photocolorimeter

A Photocolorimeter is a light sensitive device used for measuring the transmittance and absorbance of light passing through a liquid sample.

The device measures the intensity or conc. of the color that develop on introducing a specific reagent into a solution.

Product Code: MZ 101 - NR

Technical Specifications
Set zero (auto zero)	by press push switch with audio response
wavelength range	405 - 700 nm
filters	built - in 8 digital filters > 30,000 hours life
filters wavelength	405nm , 450nm , 480nm , 520nm 540nm , 578nm , 620nm , 700nm
display parameters	O.D, % T, wavelength
Detector	silicon photo diode
accuracy	+ 0.01 O.D.
stability	+0.02 O.D per hour
light source	highly accurate LED source
volume	1ml minimum
Dimension	275 x 187 x94mm (approx)
weight	1 kgs (approx)
power	230 ± 10 V , 50 Hz
Accessories	set of test tube - 5 nos. test tube holder 1 no. Operating manual
